Grade 5 Titanium Plate, TI6AL4V Plate, Titanium Grade 5 Plates, ASTM B265 Grade 5 Titanium Plate, UNS N56400 Plate, Titanium Alloy Gr.5 Plate, Ti Gr 5 Plates, Ti Alloy Gr.5 Plates Stockist, Titanium Gr 5 Hot Rolled Plates, Titanium Gr 5 Plates Supplier in Mumbai, India.

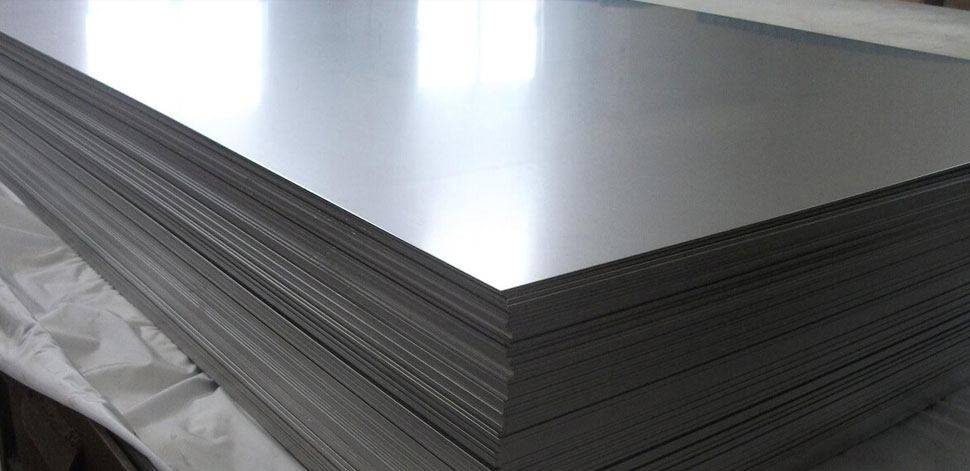

Titanium Gr 5 Plates are flat sheets made from titanium alloy grade 5, a mixture of Titanium, aluminum, and vanadium. These plates are available in various sizes & thicknesses and can be customized to meet specific requirements. They can be cut, drilled, and machined using standard tools. Grade 5 titanium plates are commonly used in many applications that require high strength & corrosion resistance, such as aerospace, chemical processing, etc.
TI-6AL-4V Plates, Ti Grade 5 CR Plates, ASME SB265 Gr.5 Titanium Alloy Plate, Grade 5 Titanium Alloy Plate, Gr.5 Titanium Plate Price, Titanium Alloy Gr 5 Plate Suppliers, Ti Alloy Grade 5 Plate Manufacturers, 3.7165 Plates, Titanium Grade 5 Plates Stockist in India.
What are Titanium Gr 5 Plates?
Titanium Grade 5 plates are typically made of sheets or rods extruded or hot rolled to shape. The higher-grade titanium alloy offers higher strength and flexibility than its lower-grade counterparts. It can also withstand extreme temperatures, making it ideal for heat exchangers and pump applications. The Gr 5 grade of Titanium is known for its ability to withstand extreme temperatures & good formability, making it suitable for many industrial applications.
What are the features of Titanium Gr 5 Plates?
The features of the Grade 5 Titanium plate include the following:
• Good weldability.
• Excellent fatigue properties.
• Low modulus of elasticity.
• Increased corrosion resistance in saltwater conditions
• Enhanced mechanical properties at elevated temperatures
• Outstanding crevice corrosion resistance.
These Ti-6al-4v plates provide superior strength without compromising on flexibility or toughness.
What are the advantages of Titanium Gr 5 Plates?
The advantages of these plates are their lightweight, durable construction and their improved machinability over other types of titanium alloys such as Gr1 and Gr2. The Ti6al4v plates also offer excellent electrical conductivity, thermal expansion characteristics, and non-magnetic properties.
What are the applications of Titanium Gr 5 Plates?
Titanium Gr 5 Plates are suitable for many applications, including medical implants, aerospace structures, automotive components, chemical processing equipment, etc. They can also be used in various industries, from food processing to construction. These Ti6al4v plates are exceptionally resistant to fatigue & load stresses allowing them to be used in multiple heavy-duty applications where other metals may fail. The corrosion resistance of the plate makes it ideal for use in environments where exposure to harsh chemicals or pollutants is possible.
Titanium Gr 5 Plates from Palgotta Metal Pvt Ltd, are perfect for various industrial applications. Our superior quality Ti-6al-4v plates offer exceptional strength, durability, & corrosion resistance – ideal for high-temperature & pressure environments. Their lightweight characteristics make them an excellent choice for aerospace and marine engineering projects. These top-of-the-line products from Palgotta Metal Pvt Ltd are available in various sizes & thicknesses, allowing for a customized solution for every project. With an extensive network of global suppliers, we provide our customers with the convenience of quickly sourcing the plates they need.
Titanium Grade 5 Plate Grades and Specification
- Standard: ASTM B265 / ASME SB265
- Dimensions: ASTM, ASME, and API
- Plate: thickness ranges from .0125″ to 5.00″
- Sheet: thickness range from .008″ to .0125″
- Size: 15NB to 150NB In
- Tempers: Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard
- Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
- Value added services for Plates: Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing
Equivalent Material of Titanium Grade 5 Plates
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr.5 | 3.7165 | N56400 |
Specialized in Titanium Grade 5 Plates
- Titanium Grade 5 Plates Thickness
- Ti6al4v Plates in Mumbai
- Titanium Grade 5 Plates Stockholder
- Titanium Alloy Grade 5 Plates Supplier
- Titanium Gr 5 Plates at Best Price List In India
- Titanium Gr.5 Hot Rolled Plates
- Titanium Grade 5 Plate in India
- Gr.5 Titanium Plates Manufacturer
- Titanium Grade 5 Industrial Plates
- Titanium Alloy ti-6al-4v Plate
- Ti Gr.5 Plates
- Grade 5 Titanium Plates Stockist In Mumbai
- Cut To Size Titanium Grade 5 Plate
- Titanium ti-6al-4v Plates
- Ti Gr 5 Plates Wholesale in Mumbai
- Titanium Alloy Gr 5 Cold Rolled Plates
- ASME SB265 Titanium Grade 5 Plates
- ASTM B265 ti6al4v Titanium Plates
- Titanium Gr.5 Plates Exporters
- Titanium UNS N56400 Plates
- Titanium 3.7165 Plates
- Titanium Grade 5 Plates Supplier in India
Chemical Properties Of Grade 5 Titanium Plate
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Titanium Gr.5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
Titanium Grade 5 Plates Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr.5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
ASTM B265 Titanium Grade 5 Plate Sizes Chart
| Thickness | Thickness | Size Range | Surface Area per Unit weight | Approx Weight per Plate | ||
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
|---|---|---|---|---|---|---|
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Titanium Grade 5 Plate Weight Chart
| Weight per | Size | Size | Weight per | ||||
| Plates (Kg) | (mm) | (mm) | Plates (Kg) | ||||
| 12.8 | 2500 x | 1250 x | 0.5 | 2000 x | 1000 x | 1.5 | 24.6 |
| 8.2 | 2000 x | 1000 x | 0.5 | 3000 x | 1500 x | 1.2 | 44.2 |
| 17.9 | 2500 x | 1250 x | 0.7 | 3000 x | 1500 x | 1.5 | 55.3 |
| 13.1 | 2000 x | 1000 x | 0.8 | 2000 x | 1000 x | 2.0 | 32.7 |
| 11.5 | 2000 x | 1000 x | 0.7 | 2500 x | 1250 x | 1.5 | 38.4 |
| 14.7 | 2000 x | 1000 x | 0.9 | 3000 x | 1500 x | 2.0 | 73.7 |
| 20.5 | 2500 x | 1250 x | 0.8 | 2500 x | 1250 x | 2.0 | 51.2 |
| 33.2 | 3000 x | 1500 x | 0.9 | 2500 x | 1250 x | 2.5 | 63.9 |
| 36.8 | 3000 x | 1500 x | 1.0 | 2500 x | 1250 x | 3.0 | 77.5 |
| 23.0 | 2500 x | 1250 x | 0.9 | 2000 x | 1000 x | 2.5 | 40.9 |
| 25.6 | 2500 x | 1250 x | 1.0 | 2000 x | 1000 x | 3.0 | 49.6 |
| 16.4 | 2000 x | 1000 x | 1.0 | 3000 x | 1500 x | 2.5 | 92.1 |
| 19.6 | 2000 x | 1000 x | 1.2 | 3000 x | 1500 x | 3.0 | 112.0 |
| 30.7 | 2500 x | 1250 x | 1.2 | – | – | – | – |
Grade 5 Titanium Plates Price List
- cold rolled / hot rolled gr. 2 titanium plate
US $2300-2400 / Ton - ti alloy gr 5 plate astm b265 asme sb265 uns n56400
US $1800-2500 / Ton - top quality grade 5 titanium plate with factory price
US $1200-2500 / Ton - cheap price ti alloy plate ti6al4v
US $1500-1800 / Ton - customized titanium uns n56400 astm b265 plate for marine industry
US $3550-2200 / Ton - ti-6al-4v titanium alloy metal plate
US $1500-2300 / Ton - prime astm b265 uns n56400 titanium plates in stock
US $5000-2400 / Ton - grade 5 titanium plate price
US $1300-4100 / Ton - gr.5 ti alloy plate price per kg
US $30-80 / Piece - the most popular titanium plate gr. 2 manufacturer
US $800-2300 / Ton
Titanium Gr. 2 Plate Suppliers | Titanium Alloy Gr. 2 Plate Manufacturers | Titanium Grade 5 Plate Latest Price | Titanium Grade 5 Plate Stockists | Ti Grade 5 Plate | Supplier of Titanium Gr 5 Plate | Titanium Gr 5 Plate Exporters
Titanium Grade 5 Plate Value Added Services / Processing
- Cladding
- Heat Treatment
- Annealed
- Pickling, Polish
- Rolling
- Cutting
- Bending
- Forging
- Minor Fabrication etc.
- Drilling
- Milling
- Punching
- Forming
- Hot Forming
- Welding
- Shearing
- Grinding
- Testing
