Inconel 625 Pipes & Tubes


Inconel 625 Pipes & Tubes

ASTM B704 625 Inconel Welded Tube, ASME SB444 Alloy 625 Seamless Tube, Inconel 625 ERW Tubes, 625 Inconel Tube Manufacturers, Nickel Alloy 625 SMLS Pipe, Inconel 625 EFW Pipes, Inconel 625 ERW Pipes Stockist in India.

What are Inconel 625 Pipes & Tubes?

Inconel 625 Pipes & Tubes are high-performance alloys made with nickel-chromium alloy. They offer superior corrosion, oxidation, and heat resistance and are used in chemical processing, cryogenic storage tanks, power plants, aerospace components, and more. Inconel 625 tubing is typically welded or seamless and has excellent mechanical properties such as high strength at elevated temperatures, good fatigue resistance, and excellent weldability.

What are the features of Inconel 625 Pipes & Tubes?

The significant features of Inconel 625 Pipes & Tubes include:
• Excellent oxidation resistance at high temperatures.
• Good fatigue strength.
• Good corrosion resistance in both acidic and alkaline environments.
• Solid mechanical properties even at cryogenic temperatures.
• Outstanding formability/weldability.
• High creep rupture strength and resistance to pitting or crevice corrosion.

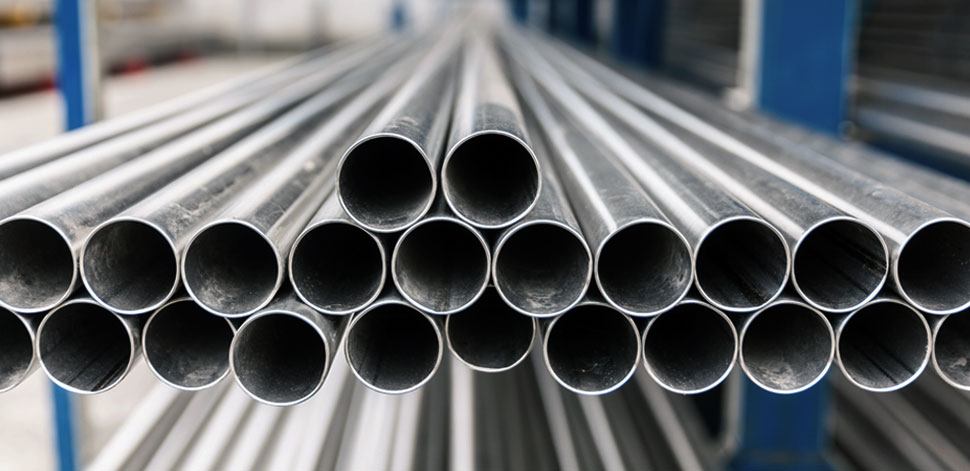

Inconel 625 Pipes Tubes

What are the applications of Inconel 625 Pipes & Tubes?

Inconel 625 Pipes & Tubes are used in various industries due to their strength, corrosion resistance, and weldability. Applications of these pipes include oil and gas pipelines, power plants, aircraft engine parts, chemical processing equipment, heat exchangers, marine engineering components, nuclear fuel reprocessing systems, and more. In addition to this, these tubes are also used for aerospace engine components like exhaust liners and exhaust ducts. They are also used for high-temperature parts of jet engines, such as afterburner sections and combustion chambers.

Overall, Inconel 625 Pipes & Tubes provide excellent performance with long-term durability even in harsh conditions or corrosive environments. They are cost-effective and highly reliable for high-temperature applications. Manufacturers can customize these pipes and tubes based on customers’ size, shape, thickness, and length requirements. Thus, Inconel 625 Pipes & Tubes provide outstanding reliability, performance, and affordability. They are suitable for a wide range of industrial applications that require durable, corrosion-resistant components that can withstand extreme temperatures.

Inconel 625 Pipes & Tubes manufactured by Palgotta Metal Pvt Ltd are known for their outstanding corrosion and oxidation resistance, strength, and toughness at high temperatures. They also possess excellent fatigue properties in both static and dynamic loadings. Our Inconel pipes and tubes are ideal for high-pressure applications with superior performance under extreme temperatures. Manufactured from high-quality raw materials, our Inconel 625 Pipes & Tubes are highly acclaimed for their excellent quality and performance. We also provide customized solutions to meet the diverse needs of our clients.

Pipes & Tubes Manufacturer

Inconel 625 Pipes & Tubes Specification

  • Standards: ASTM B444, B704, B705 / ASME SB444, SB704, SB705
  • Size Range : 1/8″ – 48″
  • Standard: ASTM, ASME and API
  • Length: Single Random, Double Random & Required Length
  • Form : Round Pipes & Tubes, Square Pipes & Tubes, Rectangular Pipes & Tubes
  • Thickness: 0.5 – 20mm
  • Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
  • Types: Seamless / ERW / EFW / Welded
  • End: Plain End, Beveled End, Treaded

Equivalent Material of Inconel 625 Pipes & Tubes

STANDARD UNS WNR. AFNOR EN JIS BS GOST OR
Inconel 625 N06625 2.4856 NC22DNB4M NiCr22Mo9Nb NCF 625 NA 21 ХН75МБТЮ ЭИ602

Different Types of 625 Inconel Pipes & Tubes

Inconel 625 Seamless Pipes
Inconel 625 Seamless Pipes
Alloy 625 Welded Pipe
Alloy 625 Welded Pipe
Inconel 625 EFW Pipes
Inconel 625 EFW Pipes
Inconel 625 Seamless Tubes
Inconel 625 Seamless Tubes
Inconel 625 Welded Tubes
Inconel 625 Welded Tubes
Inconel 625 ERW Tubes
Inconel 625 ERW Tubes

Specialized in Inconel 625 Pipes and Tubes

  • 625 Inconel Welded Pipes
  • Inconel 625 Instrumentation Tubing
  • 625 Inconel Tubing Wholesale in Mumbai
  • 625 Inconel Tubes Stockist In India
  • 625 Inconel Round Pipes
  • 625 Inconel Coiled Tubing
  • 625 Inconel Pipe Pressure Rating
  • ASTM B444 625 Inconel SMLS Tubing
  • Nickel Alloy 625 Capillary Tube
  • Inconel 625 Welded Tubes
  • Inconel UNS N06625 Tubing
  • 625 Inconel Schedule 40 Pipe Chart
  • Inconel 625 Pipe Exporters
  • Inconel 625 Pipe Manufacturer
  • Inconel 625 4″ Seamless Pipe Schedule 80
  • 625 Inconel Alloy Pipes
  • UNS N06625 Tubing
  • Inconel 625 Tubes Price
  • 625 Inconel Thin Wall Pipe
  • Inconel 625 Tube Manufacturers
  • Alloy 625 Pipes at Best Price List In Mumbai India
  • Inconel 625 Alloy Welded Pipe
  • Inconel 625 Custom Pipes Tubes
  • Inconel 625 Tube Supplier in Mumbai
  • Inconel 625 Tubes Supplier in India
  • Inconel 625 Condenser Tubes
  • 625 Inconel Seamless Pipes
  • Nickel Alloy UNS N06625 Pipe
  • Inconel 625 Pipes Stockist in Mumbai
  • Inconel 625 Tubes Manufacturer
  • Inconel 625 Hollow Pipe
  • ASME SB444 625 Inconel Seamless Tubes
  • Inconel 625 Welded Pipe
  • Inconel 625 Industrial Pipes Tubing
  • 625 Inconel Electric Fusion Welding Pipes
  • Inconel 625 Exhaust Tube
  • 625 Inconel Pipes Manufacturer
  • Nickel Alloy 625 Pipes
  • Inconel 625 Pipes in India
  • Inconel 625 Heat Exchanger Tubes
  • 625 Inconel EFW Pipes
  • Inconel 625 Pipe Supplier
  • Inconel 625 Tubing Price In India
  • Inconel 625 Tube Stockholder
  • Inconel 625 Tube Manufacturer In India
  • Inconel 625 ERW Pipe
  • Inconel 2.4856 Pipes
  • Inconel N06625 SMLS Pipes
  • Inconel 625 Coiled Tubing
  • Inconel Alloy 625 Capillary Tubes
  • Inconel 625 Pipes Tubes
  • ASME SB704 625 Inconel Welded Tubing

Chemical Properties Of 625 Inconel Pipes / Tubes

Grade C Mn Si S Al Ti Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015 max 0.40 max 0.40 max 5.0 max 58.0 min 20.0 – 23.0

Inconel 625 Pipe & Tube Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa -930 Psi – 75,000 , MPa – 517 42.5 %

Inconel 625 Seamless Pipe Weight Chart

NPS Outside Diameter Wall Thickness Weight Weight
in mm in mm Sched kg/Mtr Lb/ft
1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
0.147 3.734 80 STD 1.621 1.088
3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
0.154 3.912 80 STD 2.195 1.474
1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
0.179 4.547 80 STD 3.325 2.172
1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
0.191 4.851 80 STD 4.464 2.997
1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
0.200 5.080 80 STD 5.409 3.361
2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
0.218 5.537 80 STD 7.480 5.022
2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
0.276 7.010 80 STD 11.411 7.661
3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
0.300 7.620 80 STD 15.272 10.253
4″ 4.500 114 0.237 6.020 16.073 10.790
0.337 8.560 22.318 14.983
6″ 6.625 168 0.188 4.775 19.252 12.924
0.203 5.516 20.739 13.923
0.219 5.563 22.318 14.983
0.250 6.350 25.354 17.021
0.280 7.112 40 STD 58.263 18.974
0.312 7.925 31.334 21.036
0.375 9.525 37.285 25.031
0.432 10.973 80 XHY 42.561 28.573
0.500 12.700 48.719 32.708
8″ 8.625 219 0.188 4.775 25.233 16.940
0.203 5.156 27.198 18.259
0.219 5.563 29.286 19.661
0.250 6.350 20 33.308 22.361
0.277 7.036 30 36.786 24.696
0.322 8.179 40 42.352 28.554
0.375 9.525 49.216 33.041
0.406 10.312 60 53.085 35.638
0.500 12.700 80 XHY 64.627 43.388
10″ 10.750 273 0.188 4.775 31.588 21.207
0.219 5.563 36.689 24.631
0.250 6.350 20 41.759 28.035
0.307 7.798 30 51.002 34.240
0.344 8.738 56.946 38.231
0.365 9.271 40 STD 63.301 40.483
0.438 11.125 71.852 48.238
0.500 12.700 60 XHY 81.530 54.735
0.594 15.088 80 95.969 64.429
12″ 12.750 324 0.188 4.775 37.570 25.222
0.219 5.563 43.657 29.309
0.250 6.350 49.713 33.375
0.281 7.137 55.739 37.420
0.312 7.925 61.735 41.445
0.375 9.525 73.824 49.562
0.406 10.312 79.727 53.525
0.500 12.700 97.438 65.415
0.562 14.275 108.966 73.154
14″ 14.000 356 0.188 4.775 41.308 27.732
0.219 5.563 48.012 32.233
0.250 6.350 20 54.685 36.713
0.281 7.137 61.327 41.172
0.312 7.925 67.939 45.611
0.375 9.525 STD 81.281 54.568
0.438 11.125 40 94.498 63.441
0.500 12.700 XHY 107.381 72.090
0.625 15.875 132.983 89.278
16” 16.000 406 0.188 4.775 47.290 21.748
0.219 5.563 54.980 36.910
0.250 6.350 10 62.639 42.053
0.281 7.137 70.268 47.174
0.312 7.925 20 77.866 52.275
0.344 8.738 85.677 57.519
0.375 9.525 30

STD

 93.213 62.578
0.438 11.125 108.433 72.797
0.500 12.700 40

XHY

 123.289 82.770
18″ 18.000 457 0.219 5.563 61.948 41.588
0.250 6.350 70.593 47.393
0.281 7.137 79.208 53.176
0.312 7.925 20 87.792 58.939
0.375 9.525 STD 105.144 70.588
0.438 11.125 30 122.369 82.152
0.500 12.700 XHY 139.198 93.450
0.562 14.275 40 155.904 104.666
0.625 15.875 172.754 115.978
20″ 20.000 508 0.250 6.350 78.547 52.733
0.282 7.163 88.458 59.386
0.312 7.925 97.719 65.604
0.375 9.525 20 STD 117.075 78.598
0.438 11.125 136.305 91.508
0.500 12.700 30 XHY 155.106 104.130
0.594 15.088 40 183.378 123.110
0.625 15.875 192.640 129.328
0.688 17.475 211.368 141.901
24″ 24.000 610 0.250 6.350 94.456 63.413
0.281 7.137 106.029 71.183
0.312 7.925 117.573 18.932
0.375 9.525 20 STD 140.938 64.618
0.438 11.125 164.176 110.219
0.500 12.700 XHY 186.923 125.490
0.625 15.875 232.410 156.028
0.688 17.475 40 255.148 171.293
0.750 19.050 277.401 186.233
30″ 30.000 762 0.250 6.350 118.318 79.433
0.281 7.137 132.851 89.189
0.312 7.925 10 147.353 98.925
0.375 9.525 STD 176.731 118.648
0.438 11.125 205.983 138.286
0.500 12.700 20 XHY 234.647 157.530
0.625 15.875 30 292.066 196.078
0.688 17.475 320.817 215.380
0.750 19.050 348.988 234.293
36″ 36.000 914 0.250 6.350 142.180 95.453
0.281 7.137 159.672 107.196
0.312 7.925 10 177.133 118.918
0.375 9.525 STD 215.525 142.678
0.438 11.125 247.790 166.353
0.500 12.700 20 XHY 282.372 198.570
0.625 15.875 351.723 236.128

0.688

 17.475 386.487 259.467

0.750

 19.050 420.576 282.353
42″ 42.000 1067 0.312 7.925 206.914 138.911
0.375 9.525 STD 248.319 166.708
0.500 12.700 XHY 33.097 221.610
0.750 19.050 492.163 330.413
48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
0.438 11.125 331.404 222.487
0.500 12.700 XHY 377.822 253.650
0.750 19.050 563.750 378.473
0.875 22.225 655.969 440.383

Inconel 625 Tube Size Range

Types of Inconel 625 Tube Wall thickness of tube Out diameter of tube(OD) Length
NB Sizes (ready stock) SCH 10 / SCH 5 / SCH 80 /SCH 40 / SCH 160 1/8” ~ 8” Upto 6 Meters
Inconel 625 Seamless Tube (As per need) As per need 5.0 milimeter ~ 203.2 milimeter
Inconel 625 Welded Tube (ready stock + As per need) 1.0 ~ 15.0 milimeter 5.0 milimeter ~ 1219.2 milimeter

625 Inconel Pipe Dimension

Products OD WT Length
Inch MM Inch MM Ft max. Mt max.
Inconel 625 Pipe NPS1/2’’-6’’ 21.34-168.3 Sch10-Sch80 2.11-12.7 98’ 30.00
Inconel 625 Tube 1/2’’-3’’ 12.0-76.2 0.02’’-0.5’’ 0.5-12.0 105’ 32.00

Inconel 625 Pipe Size

Wall Sizes ( O.D.)
.010 1/16″ , 1/8″ , 3/16″
.020 1/16″ , 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″
.012 1/8″
.016 1/8″ , 3/16″
.028 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ , 1 1/2″ , 2″
.035 1/8″ , 3/16″ , 1/4″ , 5/16″ , 3/8″ , 7/16″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″
.049 3/16″ , 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/8″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 2″ , 2 1/4″
.065 1/4″ , 5/16″ , 3/8″ , 1/2″ , 16″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 3/4″ , 2″ , 2 1/2″ , 3″
.083 1/4″ , 3/8″ , 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 1 5/8″ , 1 7/8″ , 2″ , 2 1/2″ ,3″
.095 1/2″ , 5/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″
.109 1/2″ , 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″
.120 1/2″ , 5/8″ , 3/4″ , 7/8″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 2 1/4″ , 2 1/2″ , 3″
.125 3/4″ , 1″ , 1 1/4″ , 1 1/2″ , 2″ , 3″ , 3 1/4″
.134 1″
.250 3″
.375 3 1/2″

Inconel 625 Tube Pressure Rating

Tube O.D.
(in.)		 Wall Thickness of Tube (inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16 3700 5400 7300
3/8 3100 4400 6100
1/2 2300 3200 4400
3/4 2200 3000 4000 4600
1 2200 2900 3400 3900 4300

625 Inconel Pipe and Tube Price List

  • Inconel 625 Pipe Size Chart In mm: US$ 879.00-US$ 1,270.00
  • ASME SB444 625 Inconel heat exchanger tubing: US$ 1,469.00-US$ 3,543.00
  • Top quality 625 Inconel pipes tubes with factory price: US$ 567.00-US$ 1,470.00
  • 625 Inconel cold rolled pipes: US$ 380.00-US$ 2,170.00
  • Inconel 625 Alloy Pipe Price Per Kg: US$ 1,000.00-US$ 1,670.00
  • 625 Inconel hot rolled pipe price per kg: US$ 650.00-US$ 1,900.00
  • 625 Inconel cold rolled tubing manufacturer: US$ 1,440.00-US$ 2,445.00
  • ASTM B704 625 Inconel Welded Tubing: US$ 100.00-US$ 500.00
  • Seamless Inconel 625 Pipe Price Per Kg: US$ 1,100.00-US$ 2,701.00
  • Inconel 625 Pipe Price List: US$ 1,200.00-US$ 1,500.00
  • 625 Inconel pipes price per ton: US$ 600.00-US$ 1,670.00
  • Cheap price 625 Inconel pipes: US$ 1,560.00-US$ 2,400.00/ton
  • Inconel 625 hot rolled tubes standards: US$ 1,671.00-US$ 2,452.00
  • 625 Inconel Pipe Price 20 Feet: US$ 1,000.00-US$ 1,860.00
  • Inconel 625 Pipe Price Per Meter: US$ 777.00-US$ 1,960.00
  • Alloy 625 tubes price per kg: US$ 1.70-US$ 5.80/Kilogram

Large power plant beside a river
A large factory with many pipes and tanks

Industries We Serve

  • Chemical Industry
  • Petrochemical Industry
  • Oil & Gas Industry
  • Marine Industry
  • Power Generation Industry
  • Sugar Industry
  • Marine Industry
  • Pharmaceuticals Industry
  • Cement Industry
  • Dairy Industry
  • Food Processing Industry
  • Paper & Pulp Industry
  • Offshore and Onshore Services

Nickel Alloy 625 Tubes Exporters | 625 Inconel Pipe Price List | Inconel 625 Round Tube | Supplier of ASTM B444 UNS N06625 Pipes | 625 Inconel Tube Stockist | Inconel 625 SMLS Tubes| 625 Inconel Pipe Tube Dealers In India | Inconel 625 Alloy Tubes Suppliers

Inconel 625 Pipes & Tubes Value Added Services

  • Turning
  • Boring
  • Honing
  • Grinding
  • Plating
  • Heat Treating
  • Cutting & Deburring
  • Charpy Impact Testing
  • Cut-To-Length
  • Angle Cuts
  • Production Cutting
  • Cold saw cutting
  • Large Iron Billet Cutting
  • Milling
  • Chamfering
  • Special inventory programs
  • Deburring
  • Special Packaging
  • Tube Laser Cutting
  • Lathe Tube Cutting
Pipe and tube cutting machine

Export Destinations For Inconel 625 Pipe Tubes

Poland, Egypt, Azerbaijan, Brazil, Bulgaria, Chile, Sweden, Indonesia, Austria, Germany, Italy, Singapore, Afghanistan, Canada, Angola, Venezuela, Ireland, Zimbabwe, Kenya, Pakistan, United Arab Emirates, Namibia, Mongolia, South Korea, columbia, Belarus, Estonia, Gabon, Czech Republic, Norway, Hong Kong, South Africa, Bhutan, Denmark, Taiwan, Mexico, France, Portugal, Malaysia, Philippines, Qatar, Romania, Yemen, Ghana, Netherlands, Kazakhstan, Greece, Argentina, Iraq, Lithuania, Serbia, Slovakia, Jordan, Saudi Arabia, United Kingdom, Trinidad & Tobago, Kuwait, India, Turkey, China, Puerto Rico, Ecuador, Gambia, Morocco, Lahore, Belgium, Bolivia, Algiera, Croatia, Bangladesh, Nepal, Iran, Lebanon, New Zealand, Hungary, Tunisia, Russia, Spain, Switzerland, Peru, United States, Australia, Israel, Finland, Tibet, Oman, Ukraine, Japan, Nigeria, Libya, Vietnam, Macau, Costa Rica, Sri Lanka, Algeria, Bahrain, Thailand, Colombia.

Domestic Supply For Alloy 625 Pipes & Tubes

Ranchi, Thiruvananthapuram, Ahmedabad, New Delhi, Chandigarh, Jamshedpur, Haryana, Pune, Bhopal, Chennai, Kanpur, Ludhiana, Hyderabad, Bengaluru, Secunderabad, Rajkot, Indore, Ernakulam, Navi Mumbai, Surat, Noida, Nagpur, Gurgaon, Nashik, Mumbai, Thane, Visakhapatnam, Howrah, Pimpri-Chinchwad, Kolkata, Faridabad, Jaipur.

Category :

Pipes & Tubes

Date :

July 14, 2025
