ASTM B575 Hastelloy Alloy C-276 Strip, Hastelloy C276 Sheets, C276 Hastelloy Sheet Stockist, Hastelloy C276 Sheet Suppliers, 2.4819 Sheets, Nickel Alloy UNS N10276 Sheet, Hastelloy C276 Sheets Supplier in Mumbai, India.

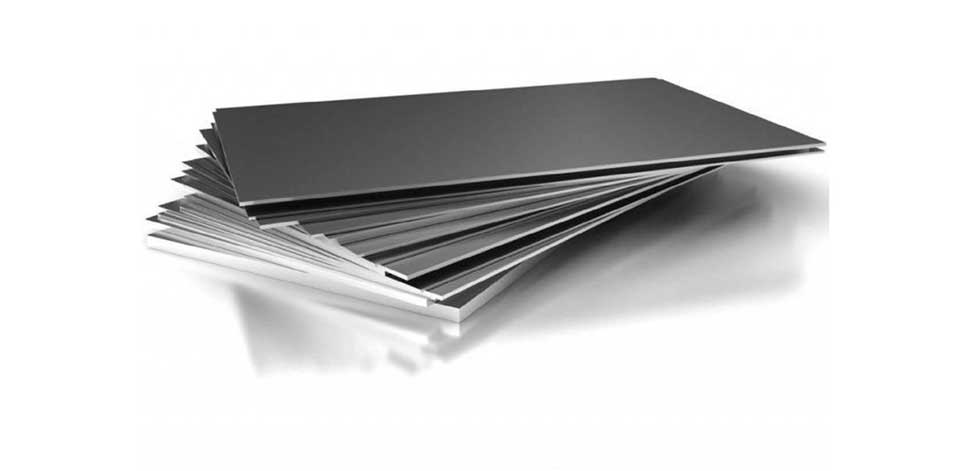

Palgotta Steel Pvt Ltd is one of India’s leading suppliers of Hastelloy C276 Sheets. It is a nickel-molybdenum-chromium alloy designed to resist pitting and crevice corrosion and stress corrosion cracking. This superalloy provides outstanding corrosion resistance in oxidizing and reducing environments and is particularly resistant to chlorine ion and sulfide stress corrosion cracking.
Our Alloy C276 sheets offer various benefits, including excellent formability, weldability, and exceptional mechanical properties at high temperatures. It can also be used in environments with temperatures ranging from cryogenic to 2000°F (1093°C). This sheet can be used in extreme environments because it combines strength, hardness, ductility, formability, and excellent corrosion resistance.
ASME SB575 Hastelloy® Alloy C276 Coil and Foil, Hastelloy C276 Plate Sheet, Hastelloy C276 Shim Sheets, Hastelloy C276 Perforated Sheets, Hastelloy C276 Sheet Price, Hastelloy C276 Sheet Manufacturers, Nickel Alloy C-276 CR Sheets, Hastelloy Alloy C276 Sheet Stockist in India.
Hastelloy C276 Sheet is a nickel-molybdenum-chromium alloy with excellent corrosion resistance in severe environments. It is the most versatile and widely used of all the Hastelloy materials, offering exceptional resistance to pitting, crevice corrosion, intergranular attack, and stress cracking corrosion. This sheet provides superior mechanical properties at high and low temperatures compared to other stainless steel alloys.
What are the features of Hastelloy C276 Sheet?
Features of Hastelloy C276 Sheet include good weldability; oxidation resistance up to 2000°F (1093°C); high strength and hardness; ductility even when cold worked; extreme corrosion protection; formability and machinability; ease of fabrication.
What are the advantages of Hastelloy C276 Sheet?
Advantages of Hastelloy C276 Sheet include excellent resistance to localized corrosion such as pitting and crevice attack; exceptional resistance to stress-corrosion cracking, erosion, and corrosion fatigue; good oxidation resistance up to 2000°F (1093°C).
What are the applications of Hastelloy C276 Sheet?
The wide range of applications for Hastelloy C276 Sheet includes:
• Chemical processing.
• Pulp and paper production.
• Waste treatment and incineration systems.
• Textile dyeing plants.
• Pharmaceuticals and food processing equipment.
It is also used in marine environments due to its superior corrosion protection. It is ideal for use when high temperatures, severe corrosive conditions, or both are present. Hastelloy C276 Sheet is an ideal choice for applications requiring superior corrosion protection.
Hastelloy C276 Sheet Grades and Specification
- Standards: ASTM B575 / ASME SB575
- Dimensions: ASTM, ASME, and API
- Hastelloy Plate: thickness ranges from .0125″ to 5.00″
- Hastelloy Sheet: thickness range from .008″ to .0125″
- Sheets Size: 15NB to 150NB In
- Value added services : Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing
- Hardness: Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
- Types: Sheets, Plates
Equivalent Material of Hastelloy C276 Sheets
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
Specialized in Hastelloy C276 Sheets
- Hastelloy C276 Foil Supplier
- ASME SB575 C-276 Hastelloy Sheets
- Hastelloy UNS N10276 Strips
- Hastelloy 2.4819 Sheets
- Cut To Size Hastelloy C276 Sheet
- C276 Hastelloy Sheet Cut to Size
- Hastelloy C-276 Cold Rolled Sheets
- ASTM B575 C276 Hastelloy Sheets
- Hastelloy C276 Sheets Wholesale in Mumbai
- C276 Hastelloy Sheets Stockist In Mumbai
- Hastelloy Alloy C276 Coils
- Hastelloy C-276 Sheets Supplier in India
- Hastelloy C276 Sheets Exporters
- Hastelloy C276 Sheets Stocks
- Nickel Alloy C-276 Sheets
- ASME SB575 Hastelloy Alloy C276 Coil
- C276 Hastelloy Hot Rolled Sheets
- Nickel Alloy C276 Shim Sheets
- C276 Hastelloy Sheets Manufacturer
- Hastelloy C276 Sheet at Best Price List In India
- Hastelloy C276 Industrial Sheets
- Hastelloy C276 Sheets Stockholder
- Hastelloy C276 Perforated Sheets
- Hastelloy C276 Sheet in India
- Hastelloy C-276 Foil Sheet in Mumbai
- Hastelloy UNS N10276 Sheets Supplier
Hastelloy C276 Data Sheet
Chemical Properties Of C276 Hastelloy Sheet
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
Hastelloy C276 Sheets Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
ASME SB575 Hastelloy C276 Sheet Sizes
| Size (in inches) | Size (in mm) |
|---|---|
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .625″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
C276 Hastelloy Sheet Thickness & Weight
| Thickness | Thickness | Size Chart | Hastelloy C276 Sheet Unit weight | Hastelloy C276 Sheet Approx Weight | ||
|---|---|---|---|---|---|---|
| inches | mm | lbs/ft² | kg/m² | lbs | kg | |
| 0.015 | 0.381 | 36 x 96 | 0.630 | 3.07566 | 15.12 | 6.84936 |
| 0.015 | 0.381 | 36 x 120 | 0.630 | 3.07566 | 18.90 | 8.5617 |
| 0.0178 | 0.45212 | 36 x 96 | 0.756 | 3.690792 | 18.15 | 8.22195 |
| 0.0178 | 0.45212 | 36 x 120 | 0.756 | 3.690792 | 22.68 | 10.27404 |
| 0.0178 | 0.45212 | 48 x 96 | 0.756 | 3.690792 | 24.19 | 10.95807 |
| 0.0178 | 0.45212 | 48 x 120 | 0.756 | 3.690792 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 30 x 96 | 1.008 | 4.921056 | 20.16 | 9.13248 |
| 0.0235 | 0.5969 | 30 x 120 | 1.008 | 4.921056 | 25.20 | 11.4156 |
| 0.0235 | 0.5969 | 36 x 96 | 1.008 | 4.921056 | 24.19 | 10.95807 |
| 0.0235 | 0.5969 | 36 x 120 | 1.008 | 4.921056 | 30.24 | 13.69872 |
| 0.0235 | 0.5969 | 36 x 144 | 1.008 | 4.921056 | 36.29 | 16.43937 |
| 0.0235 | 0.5969 | 48 x 96 | 1.008 | 4.921056 | 32.26 | 14.61378 |
| 0.0235 | 0.5969 | 48 x 120 | 1.008 | 4.921056 | 40.32 | 18.26496 |
| 0.0235 | 0.5969 | 48 x 144 | 1.008 | 4.921056 | 48.39 | 21.92067 |
| 0.0291 | 0.73914 | 30 x 96 | 1.260 | 6.15132 | 25.20 | 11.4156 |
| 0.0291 | 0.73914 | 30 x 120 | 1.260 | 6.15132 | 31.50 | 14.2695 |
| 0.0291 | 0.73914 | 36 x 96 | 1.260 | 6.15132 | 30.24 | 13.69872 |
| 0.0291 | 0.73914 | 36 x 120 | 1.260 | 6.15132 | 37.80 | 17.1234 |
| 0.0291 | 0.73914 | 36 x 144 | 1.260 | 6.15132 | 45.37 | 20.55261 |
| 0.0291 | 0.73914 | 48 x 96 | 1.260 | 6.15132 | 40.32 | 18.26496 |
| 0.0291 | 0.73914 | 48 x 120 | 1.260 | 6.15132 | 50.41 | 22.83573 |
| 0.0291 | 0.73914 | 48 x 144 | 1.260 | 6.15132 | 60.49 | 27.40197 |
| 0.0355 | 0.9017 | 30 x 96 | 1.512 | 7.381584 | 30.24 | 13.69872 |
| 0.0355 | 0.9017 | 30 x 120 | 1.512 | 7.381584 | 37.80 | 17.1234 |
| 0.0355 | 0.9017 | 36 x 96 | 1.512 | 7.381584 | 36.29 | 16.43937 |
Hastelloy C276 Perforated Sheet
We now offer circle cutting in Hastelloy Grade C276 perforated sheets up to 1000mm diameter.
| Hole Dia mm | Hole Centres mm | O/A | Tck mm | Full Sheet Size mm |
|---|---|---|---|---|
| 0.75 | 1.5 | 23% | 0.6 | 2000 x 1000 |
| 1 | 2 | 23% | 1.0 | 2000 x 1000 |
| 1.5 | 2.6 | 30% | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 1.0 | 2000 x 1000 |
| 2 | 3.5 | 30% | 1.0 | 2000 x 1000 |
| 3 | 5 | 33% | 1.0 | 2000 x 1000 |
| 4 | 5.6 | 46% | 1.0 | 2000 x 1000 |
| 5 | 8 | 35% | 1.0 | 2000 x 1000 |
| 6 | 8 | 51% | 1.0 | 2000 x 1000 |
| 8 | 10 | 58% | 1,0 | 2000 x 1000 |
C276 Hastelloy Sheet Price List
- ASTM B575 Nickel Alloy C-276 Coil
US $500-2300 / Ton - C276 Hastelloy Metal Sheet
US $1200-3200 / Ton - C276 Alloy hot rolled and cold rolled Sheet
US $2700-3400 / Ton - Top quality C-276 Hastelloy Sheet with factory price
US $1100-3300 / Ton - Cheap price of Hastelloy Sheet C276
US $1200-1800 / Ton - cold rolled / hot rolled C276 Hastelloy Sheet
US $1100-2200 / Ton - Hastelloy Alloy C276 Strip Tape
US $1100-4200 / Ton - ASME SB575 C-276 Hastelloy Shim Stock
US $2150-2200 / Ton - High Nickel Alloy C276 Sheet price
US $12-49 / Piece - C276 Hastelloy Sheet price
US $1300-2700 / Ton
Hastelloy C-276 Sheet Suppliers | Hastelloy C276 Sheet Stockists | Hastelloy C276 Sheet Exporters | Hastelloy C276 Sheet Latest Price | Hastelloy C-276 Sheet | Supplier of Hastelloy C276 Sheet | Hastelloy C-276 Sheet Manufacturers
Hastelloy C276 Sheet Value Added Services / Processing
- Cladding
- Heat Treatment
- Annealed
- Pickling, Polish
- Rolling
- Cutting
- Bending
- Forging
- Minor Fabrication etc.
- Drilling
- Milling
- Punching
- Forming
- Hot Forming
- Welding
- Shearing
- Grinding
- Testing
Export Destinations For Hastelloy C276 Sheets
Costa Rica, Afghanistan, Ecuador, Belgium, Belarus, United Kingdom, Sri Lanka, Ireland, Canada, columbia, Malaysia, Saudi Arabia, Hungary, Trinidad & Tobago, Indonesia, Bahrain, Netherlands, Ukraine, Kazakhstan, Norway, Russia, Nepal, Bulgaria, Finland, Greece, Estonia, Slovakia, Mexico, China, Bangladesh, Czech Republic, Romania, India, Yemen, Azerbaijan, Lithuania, South Africa, South Korea, Lahore, Tunisia, Zimbabwe, Egypt, Algiera, Croatia, Jordan, Israel, Kuwait, Colombia, Philippines, Australia, Libya, Denmark, Hong Kong, Tibet, Bolivia, Algeria, Italy, Sweden, Nigeria, New Zealand, Qatar, Taiwan, Chile, Peru, Kenya, Ghana, Pakistan, Gabon, Bhutan, Venezuela, Iran, Switzerland, Oman, Puerto Rico, France, Turkey, Portugal, Serbia, Austria, Morocco, Vietnam, Mongolia, Japan, Singapore, Brazil, Poland, Spain, Angola, Lebanon, Germany, Argentina, Iraq, Macau, Thailand, United States, United Arab Emirates, Namibia, Gambia.
Domestic Supply For Hastelloy C276 Sheets
Gurgaon, Indore, Jamshedpur, Bhopal, Haryana, Secunderabad, Bengaluru, New Delhi, Nashik, Rajkot, Howrah, Nagpur, mumbai, Chandigarh, Kanpur, Hyderabad, Kolkata, Noida, Ahmedabad, Visakhapatnam, Pimpri-Chinchwad, Ernakulam, Ranchi, Navi Mumbai, Chennai, Pune, Thiruvananthapuram, Ludhiana, Thane, Faridabad, Jaipur, Surat.
